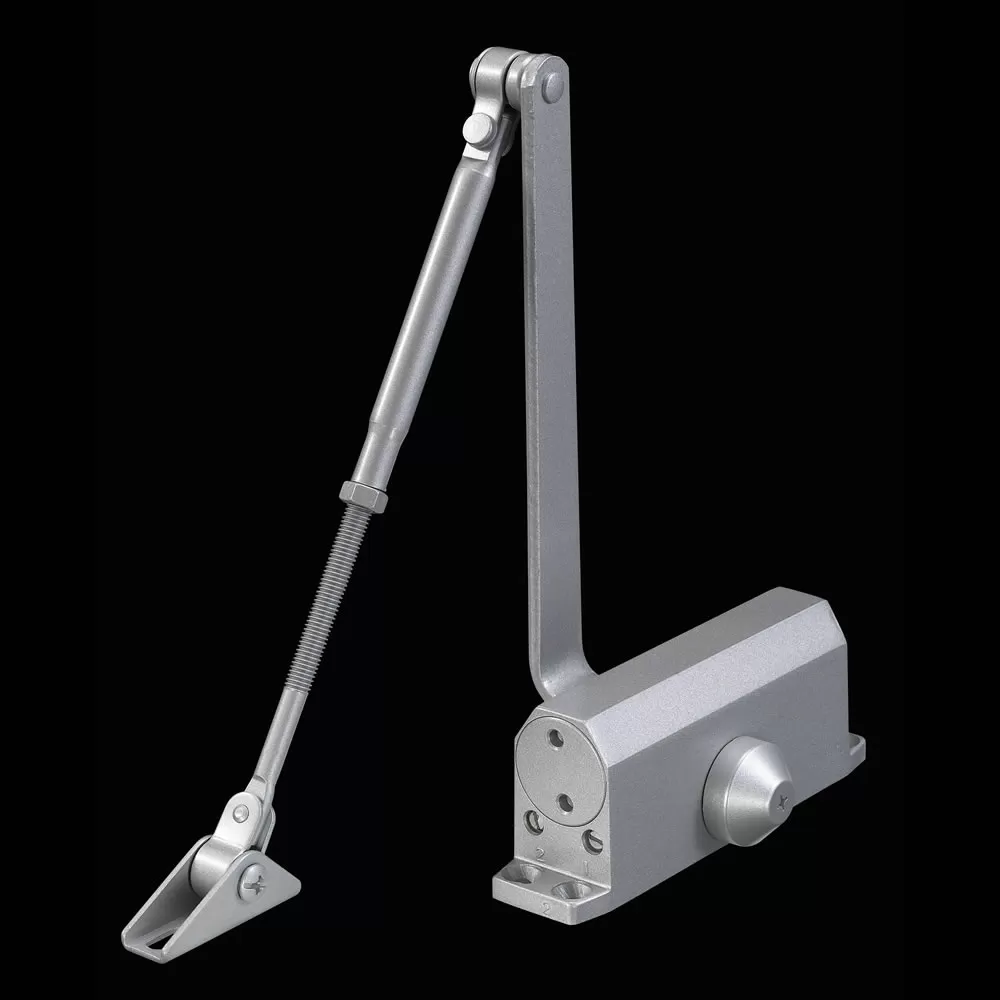

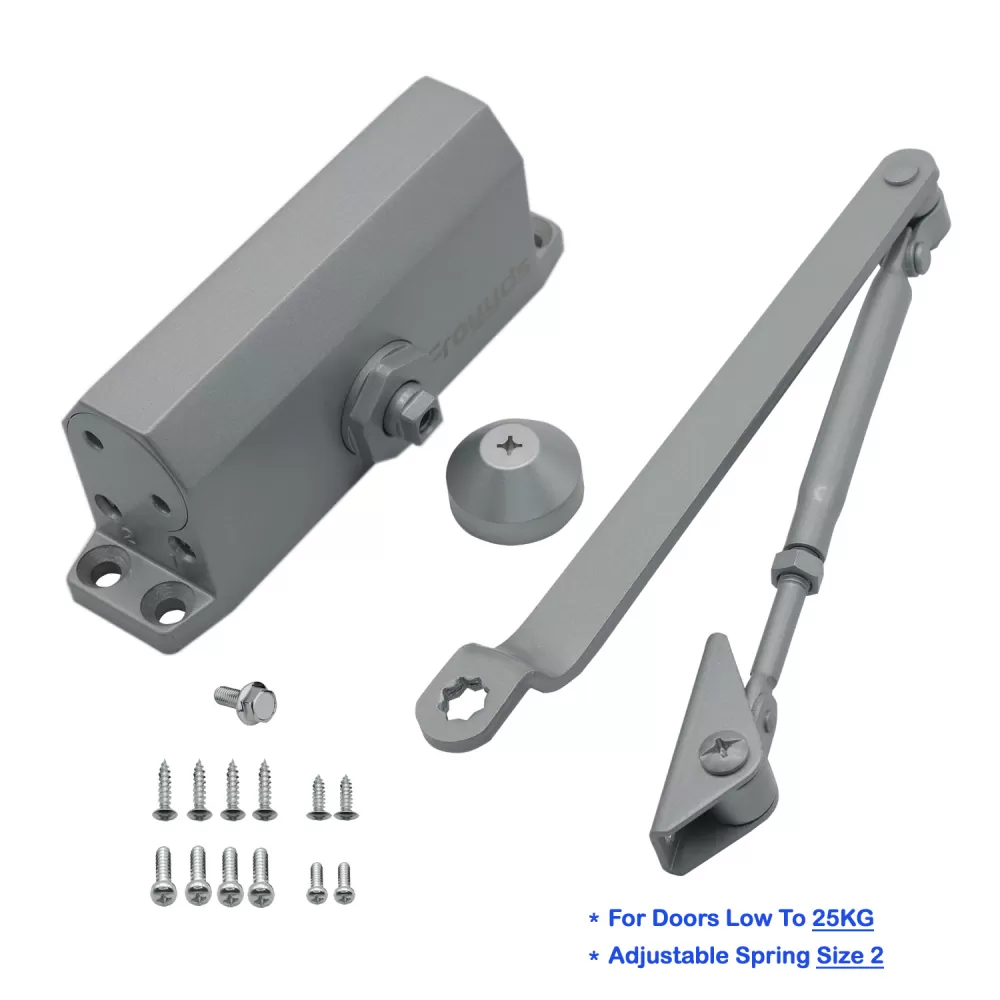

FR5012AW Hydraulic Automatic Door Closer, Adjustable Spring Size 2, Regular Arm, Cast Aluminum Body

Non Hold Open Function, Two Valves To Control The Colsing And Latching Speed, For Doors Low To 25KG

  • SKU: FR5012AW

Froyyds® FR5012AW surface mount hydraulic door closers has an advanced buffer function to avoid the noise caused by vigorously closing the door and strong wind.

High-Quality Door Closer at a Great Value

Designed for low traffic areas, our FR5012AW automatic door closer is perfect for a variety of residential/office doors. With high-quality aluminum housing and steel-encased hardware, our hydraulic closer is an incredible product for a great price.

Secure & Seamless

Don't let the door hit you on the way out! Our hydraulic door closer is built to close consistently and securely. Plus, our auto door closer ensures smooth door closure while preventing slamming.

Fully Adjustable

With two independent valves, you can adjust both the sweep motion and the catch-closing mechanism of your door arm closer, so you can set the opening force and closing speed of your door.

Easy to Install

Each of our hydraulic door closers come with a detailed guide that includes a fitting template, saving you time and a trip to the general contractor. Watch our exclusive installation video for additional instruction.

Mounting Options

Regular (Pull Side), Top Jamb (Push Side)

Applicable Door Width

≤900 MM

Function

Latching/Closing Speed Adjustable, Hold Open

Withstands 500,000+ open/close cycles

For doors weight to 25~45KG

Perfect for residential & office doors

Smooth & secure close withno slamming

Works with both woodand metal surfaces

Install in under 10 minutes

For Pull-Side Door Mounts

Mount your FR5012AW Froyyds door closer body onto the "pull" side of your door and mount the closer arm on the face of the frame head.

For Doors weight to 25-45KG

Compatible with residential and office doors weight to 25-45KG and tested to withstand 500,000+ open/close cycles.

Works with Wood or Metal Doors

Install the FR5012AW Froyyds door closer in under 10 minutes on any wood or metal door in your home or office.

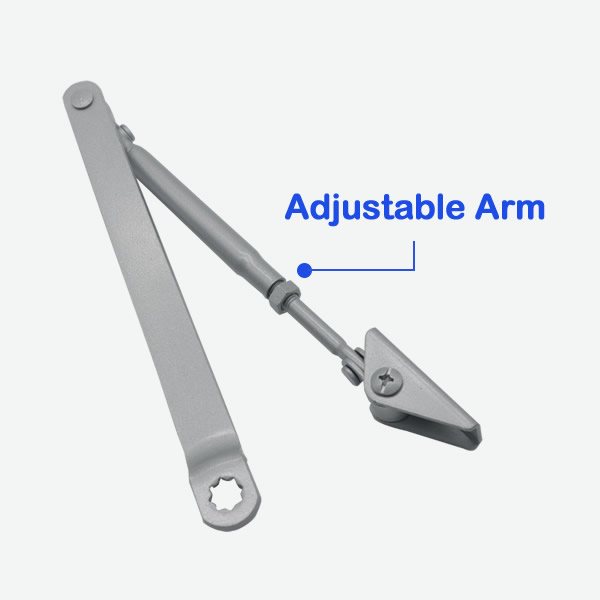

Adjustable Arm Operated

Door closers are suitable for opening left and right. The maximum opening angle is 180 degrees.
The door and the door frame should be on the same plane. If the plane distance is within 5 cm / 1.97 inches, you can adjust the arm to install the door closer smoothly.

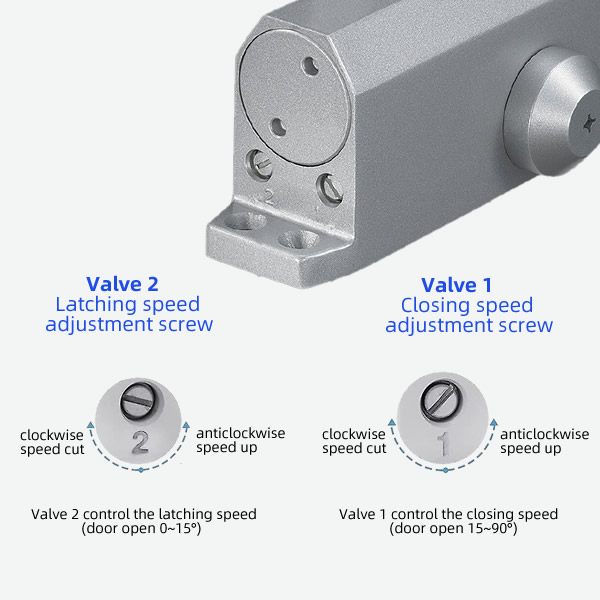

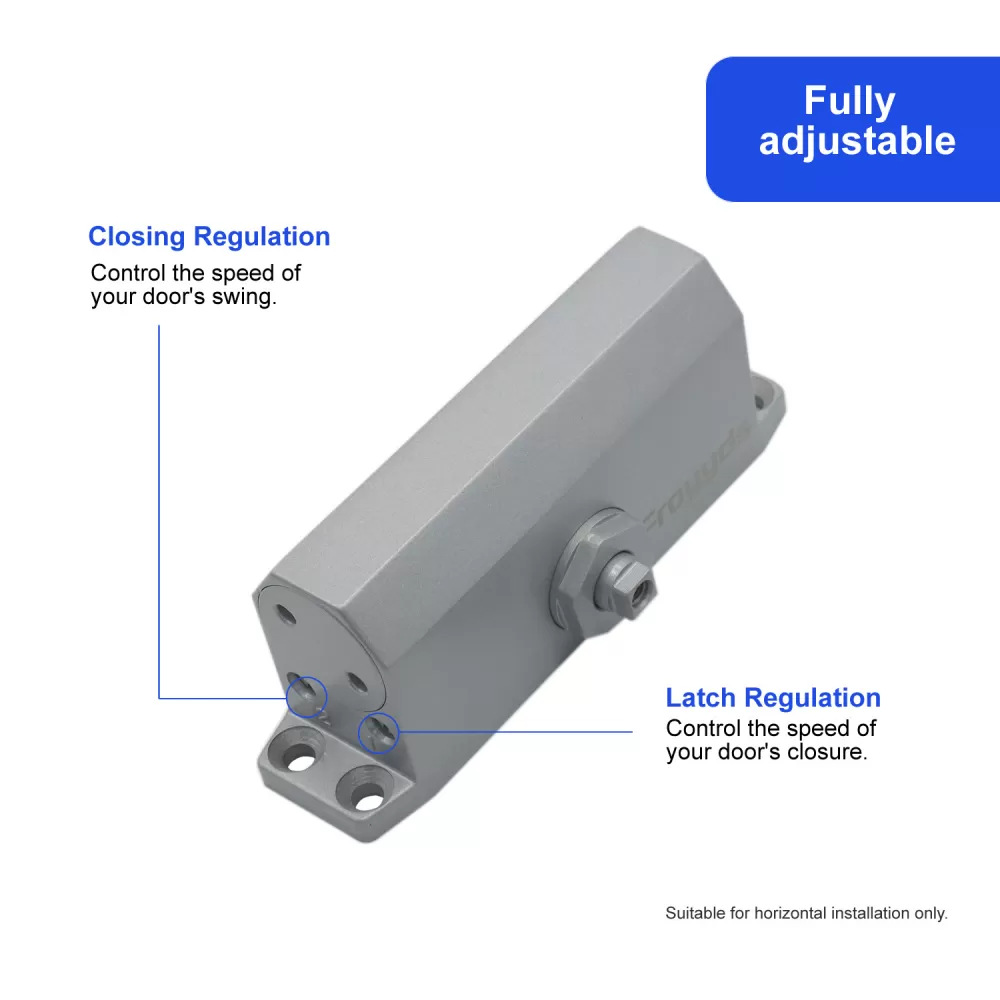

Adjustable door closing/latching speed

Closing speed control: valve 1 to control the speed of closure between 180 - 15 degrees
Latching speed control: valve 2 to control the speed of closurein the final 15-0 degrees of operation
Attention: The adjusting screw cannot be screwed out of the surface of the door closerbody, otherwise the door closer may leak oil and cannot be used.

Suitable for outdoor and internal

The door closer can work in the harsh environment of -40 ℃ ~ 50 ℃. It will not stop working because of the harsh environment. Please rest assured to use on fire doors. The oil will not freeze due to the low temperature. So it is suitable for outdoor and internal use.

Froyyds hopes to bring convenience and comfort to people's lives and improve the quality of life.

When One Door Closes,Another Opens...

Froyyds is a professional door closer supplier !

Perfect for parents who has naughty kids like to push doors.
Great for pet owners whose dogs like to push doors.
Stop noise from slamming doors.

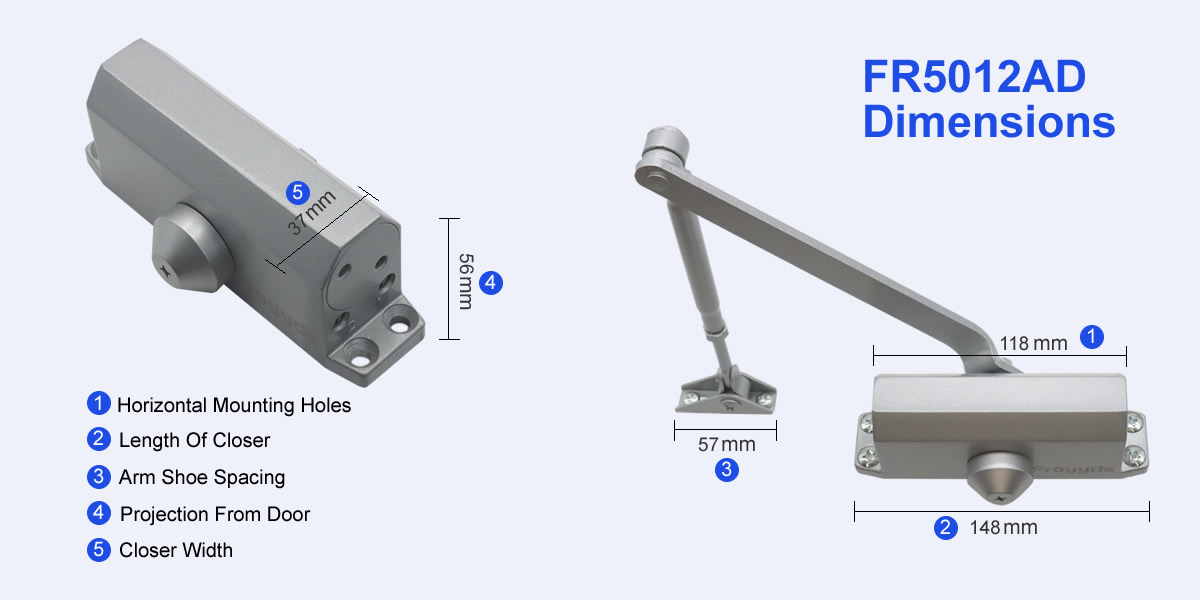

Main Parameter

Overall dimension(MM)

Installation dimension(MM)

Applicable door

weight(KG)

Applicable door

width(MM)

A

B

C

D

E

148

36.5

56

19

132

25~45

≤900

Function

I. SPEED REGULATION: Control the speed of your door's swing.

II. LATCH REGULATION: Control the speed of your door's closure.

III. HOLD OPEN

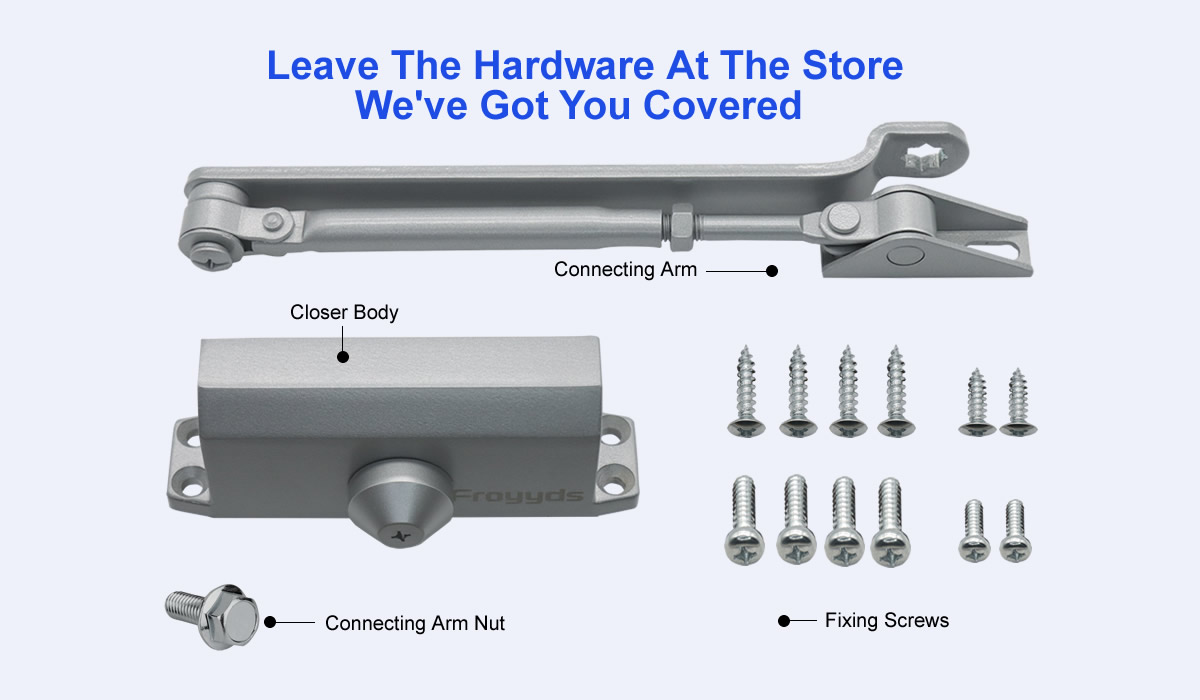

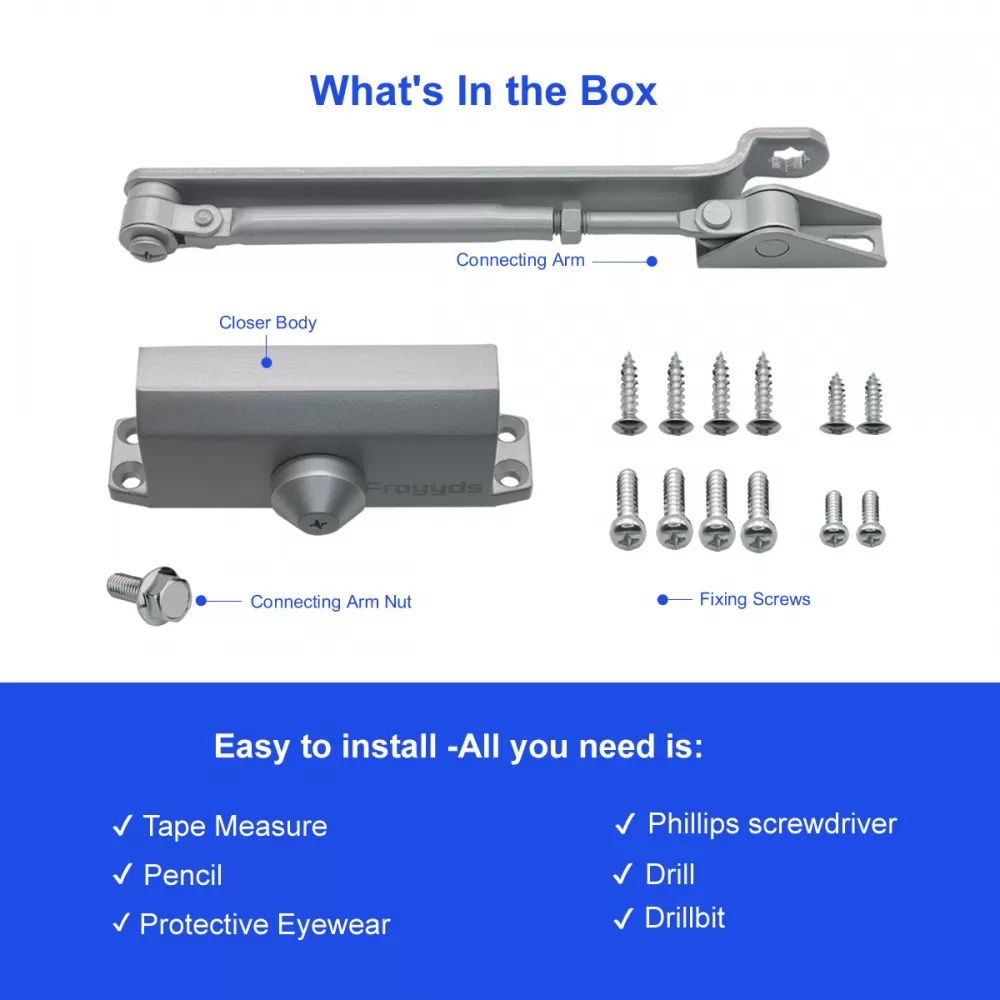

Package Include

  • 1 x Silver Door Closer
  • 6 x Metal Screws
  • 1 x Swing Arm
  • 1 x Connecting Arm Nut
  • 1 x Installation Manual
Technical Parameters
Brand Froyyds
Templating (Hole Pattern) 19MM x 132MM
Usage Light Duty
Mounting Options Regular (Pull Side), Top Jamb (Push Side)
Body Construction Cast Aluminum Body
Spring Size Adjustable Spring Size 2
Handing Non Handed – Completely Reversible
Speed Control Adjustable door closing/latching speed
Backcheck None
Piston, Spindle, Spring Heat treated heavy-duty steel piston, spindle and spring
Cover None
Fasteners Thru bolts with machine screws, wood screws & Self tapping machine screws
Item Dimensions LxWxH 148 x 36.5 x 56 MM
Item Weight 1.1KG
Installation Type Screw-In

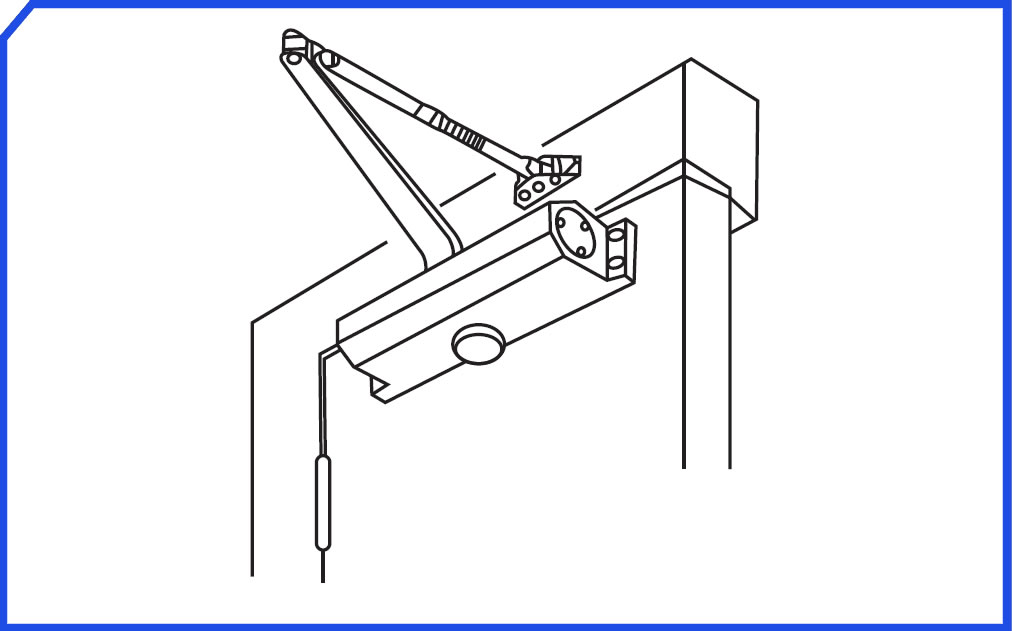

I.Regular Mounting (Pull Side)

MULTI-PURPOSE DESIGN: Works for left or right opening doors.

PERFECT FOR LIGHT RESIDENTIAL DOORS, EASY OPEN FOR WOMAN/CHILDREN, FULLY ADJUSTABLE

Notice

Mounted on the Pull Side of the Door. It involves attaching the door closer to the door and the arm is mounted on the top frame.

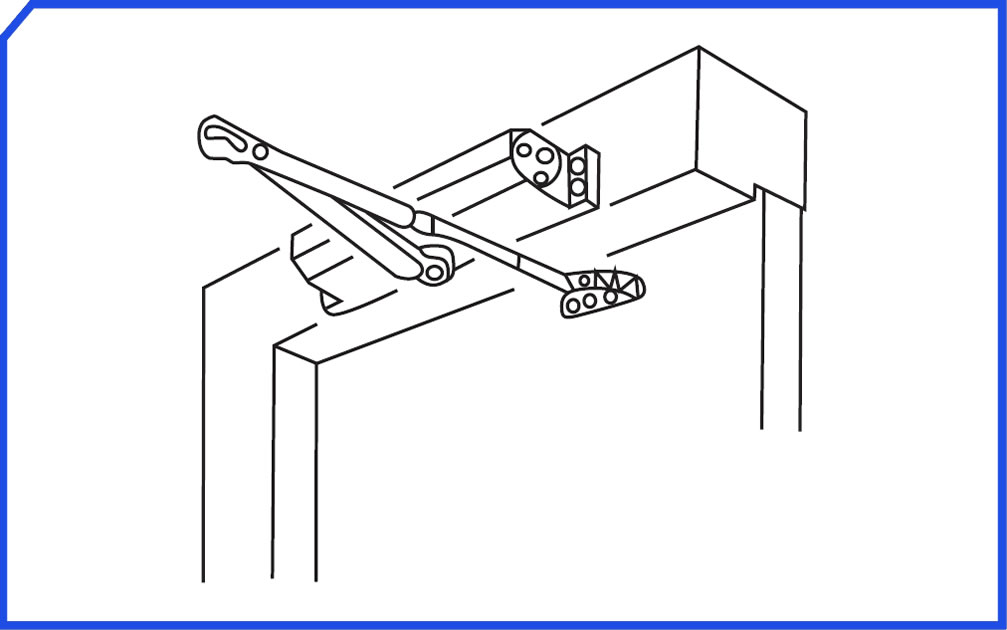

II. Top Jamb Mounting (Push Side)

MULTI-PURPOSE DESIGN: Works for left or right opening doors.

PERFECT FOR LIGHT RESIDENTIAL DOORS, EASY OPEN FOR WOMAN/CHILDREN, FULLY ADJUSTABLE

Notice

Mounted on the Push Side of the Door. The top jamb mounting is a type of door closer installation where the closer is mounted on the top of the door frame, rather than on the door face.

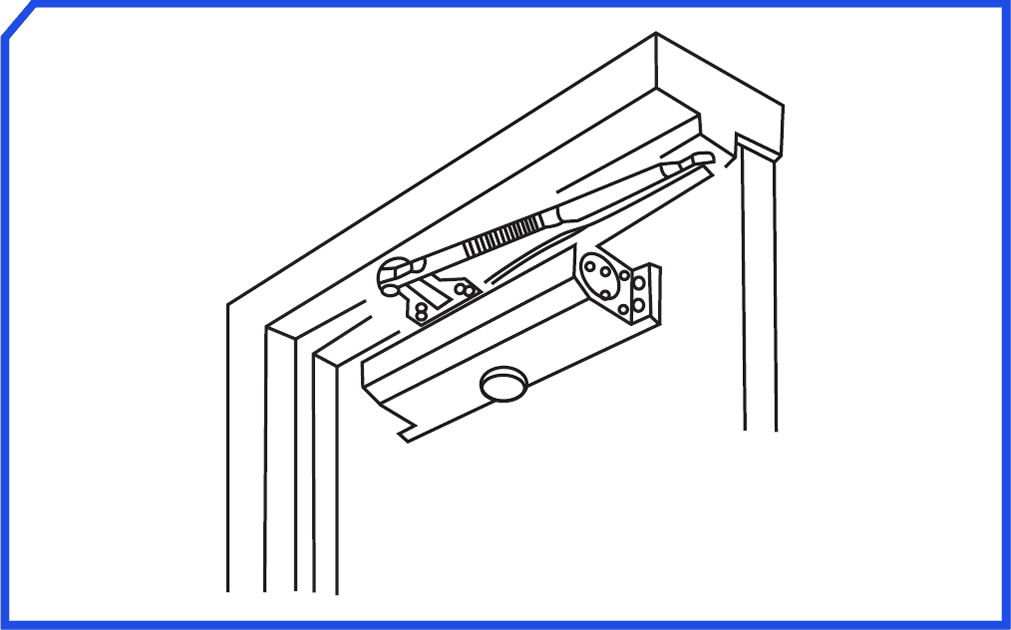

III. Parallel Arm Mounting (Push Side)

MULTI-PURPOSE DESIGN: Works for left or right opening doors.

PERFECT FOR LIGHT RESIDENTIAL DOORS, EASY OPEN FOR WOMAN/CHILDREN, FULLY ADJUSTABLE

Notice

Mounted on the Push Side of the Door. the parallel arm mounting is a type of installation that is used when the door closer is mounted on the face of the door and is used with the parallel arm mounting bracket.


  • Light duty, perfect for a variety of residential doors
  • Tri-Packed for Regular, Top Jamb Installations
  • Latching/Closing speed adjustable valve, adjustable spring power from size 2
  • Non-handed arm permits installation on doors with hinges on right or left side
  • Brand: Froyyds
  • Availability: In Stock

$29.90

Please allow 3-5 days for shipping
