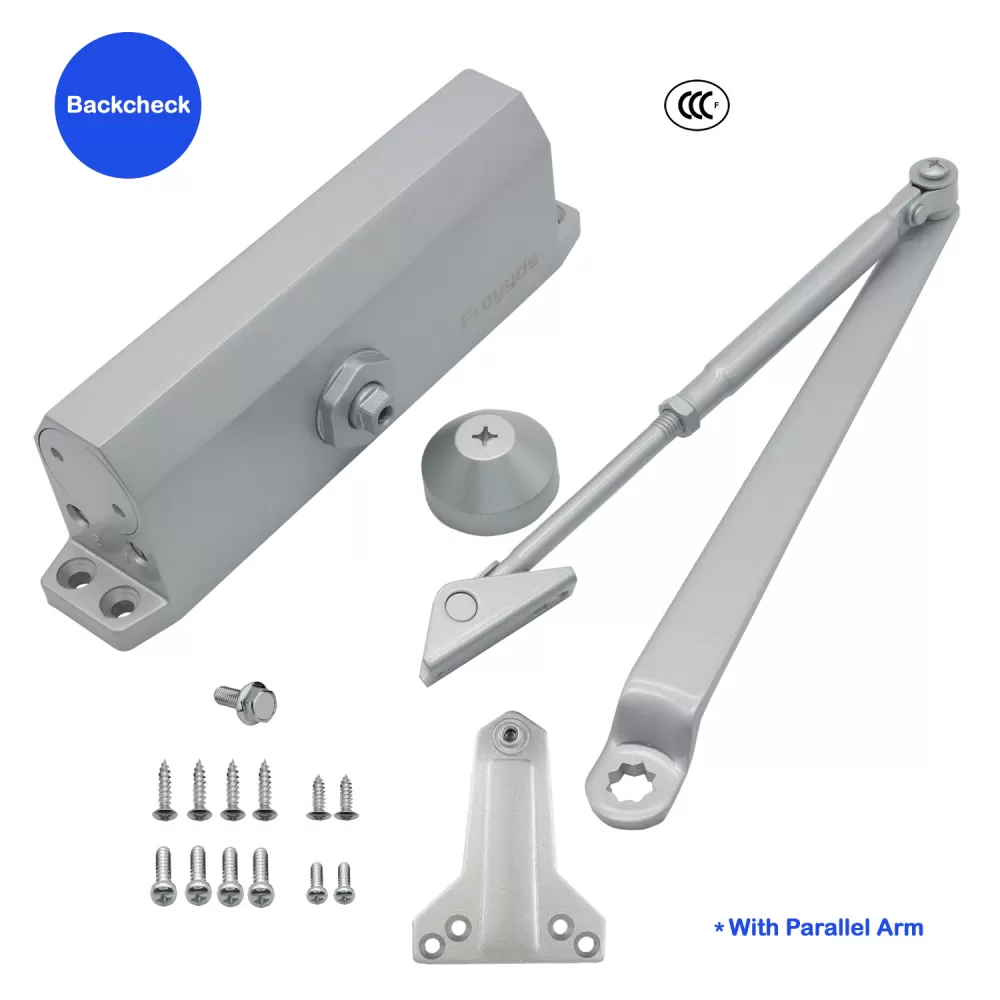

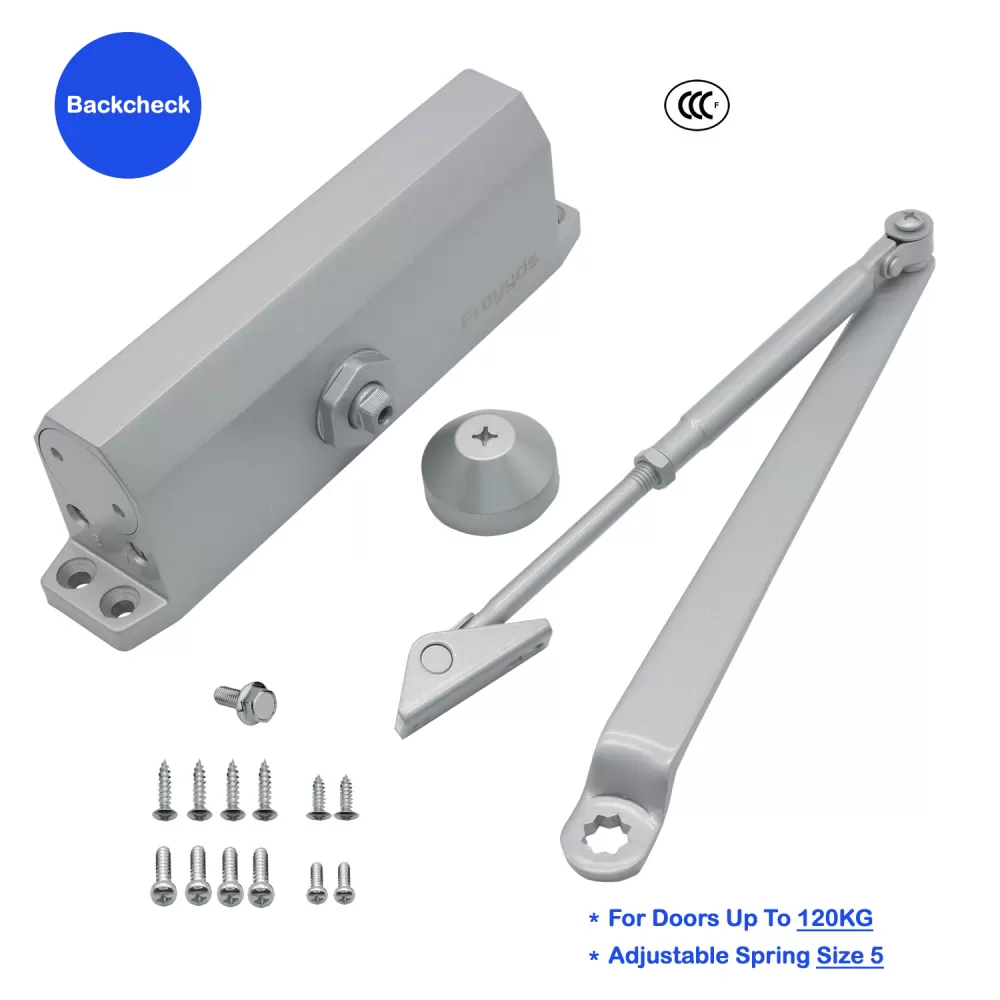

FR5045BW Heavy Duty Automatic Commercial Door Closer, Spring Power Size 5, Regular Arm, Backcheck Adjustable
Cast Aluminum Body, Three Valves To Control The Colsing/Latching Speed and Backcheck Speed, For Doors Up To 120KG
- SKU: FR5055BW
Froyyds® FR5045BW surface mount hydraulic door closers has an advanced buffer function to avoid the noise caused by vigorously closing the door and strong wind.
High-Quality Door Closer at a Great Value
Designed for medium to high traffic areas, our FR5045BW automatic door closer is perfect for a variety of aluminum storefronts, factories, schools, restaurants, and other public places. With high-quality aluminum housing and steel-encased hardware, our hydraulic closer is an incredible product for a great price.
Secure & Seamless
Don't let the door hit you on the way out! Our hydraulic door closer is built to close consistently and securely. Plus, our auto door closer ensures smooth door closure while preventing slamming.
Fully Adjustable
With three independent valves, you can adjust both the sweep motion and the catch-closing mechanism of your door arm closer, so you can set the opening force, closing speed and backcheck speed of your door.
Easy to Install
Each of our hydraulic door closers come with a detailed guide that includes a fitting template, saving you time and a trip to the general contractor. Watch our exclusive installation video for additional instruction.
Mounting Options
Regular (Pull Side), Top Jamb (Push Side), Parallel Arm (Push Side)
Applicable Door Width
≤1200 MM
Function
Latching/Closing Speed Adjustable, Backcheck Speed
Withstands 2,000,000+ open/close cycles
For doors weight to 80~120KG
Perfect for aluminum storefronts, factories, schools, restaurants, and other public places.
Smooth & secure close withno slamming
Works with both woodand metal surfaces
Install in under 10 minutes
For Pull-Side Door Mounts
Mount your FR5045BW Froyyds door closer body onto the "pull" side of your door and mount the closer arm on the face of the frame head.
For Doors weight to 80-120KG
Compatible with residential and office doors weight to 80-120KG and tested to withstand 2,000,000+ open/close cycles.
Works with Wood or Metal Doors
Install the FR5045BW Froyyds door closer in under 10 minutes on any wood or metal door in your home or office.

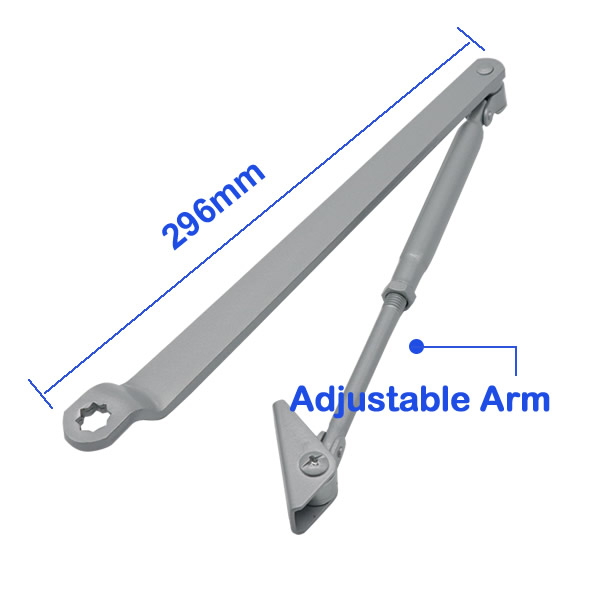

Adjustable Arm Operated
Door closers are suitable for opening left and right. The maximum opening angle is 180 degrees.
The door and the door frame should be on the same plane. If the plane distance is within 5 cm / 1.97 inches, you can adjust the arm to install the door closer smoothly.

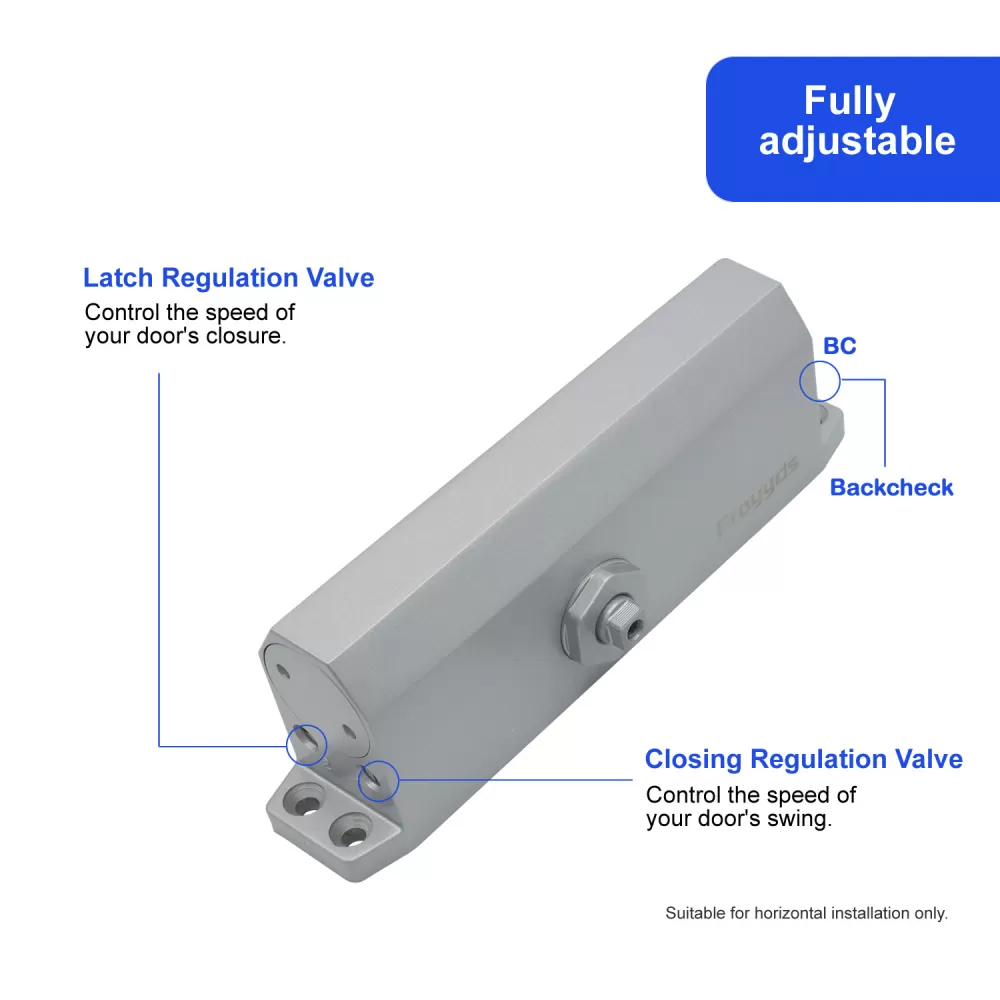

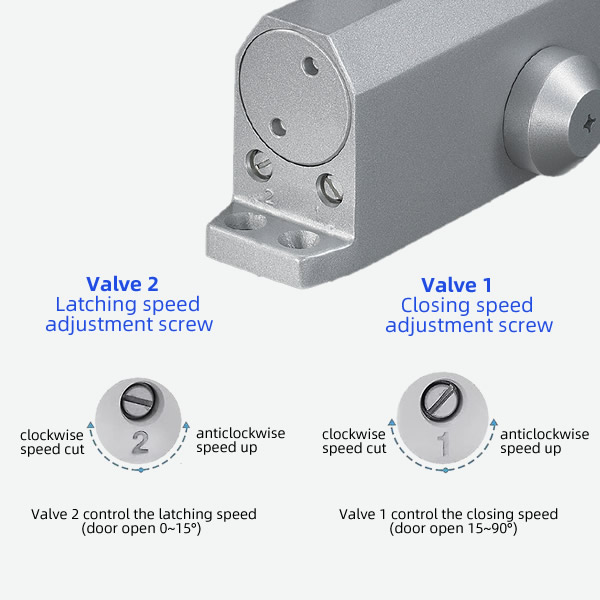

Adjustable door closing/latching speed
Closing speed control: valve 1 to control the speed of closure between 180 - 15 degrees
Latching speed control: valve 2 to control the speed of closurein the final 15-0 degrees of operation
Attention: The adjusting screw cannot be screwed out of the surface of the door closerbody, otherwise the door closer may leak oil and cannot be used.
Suitable for outdoor and internal
The door closer can work in the harsh environment of -40 ℃ ~ 50 ℃. It will not stop working because of the harsh environment. Please rest assured to use on fire doors. The oil will not freeze due to the low temperature. So it is suitable for outdoor and internal use.
Froyyds hopes to bring convenience and comfort to people's lives and improve the quality of life.
When One Door Closes,Another Opens...
Froyyds is a professional door closer supplier !
Perfect for parents who has naughty kids like to push doors.
Great for pet owners whose dogs like to push doors.
Stop noise from slamming doors.

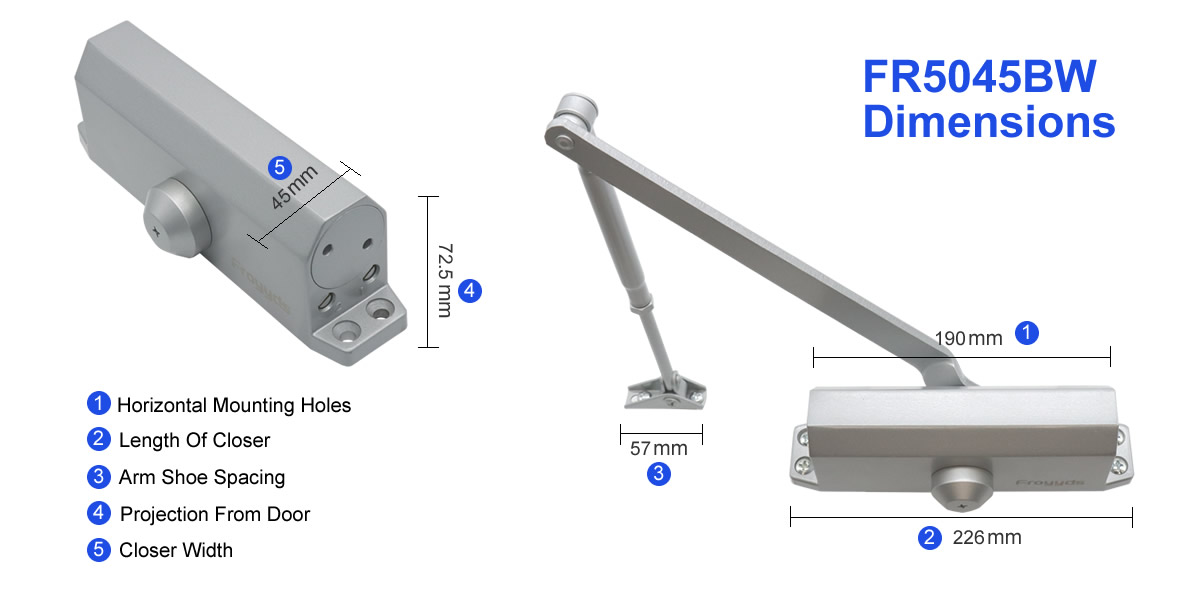

Main parameter | |||||||
Overall dimension(MM) | Installation dimension(MM) | Applicable door weight(KG) | Applicable door width(MM) | ||||
A | B | C | D | E | |||
248 | 44.5 | 72 | 19 | 230 | 80~120 | ≤1200 | |
Function | I. CLOSING SPEED REGULATION: Control the speed of your door's swing. II. LATCH SPEED REGULATION: Control the speed of your door's closure. III. BACKCHECK FUNCTION | ||||||

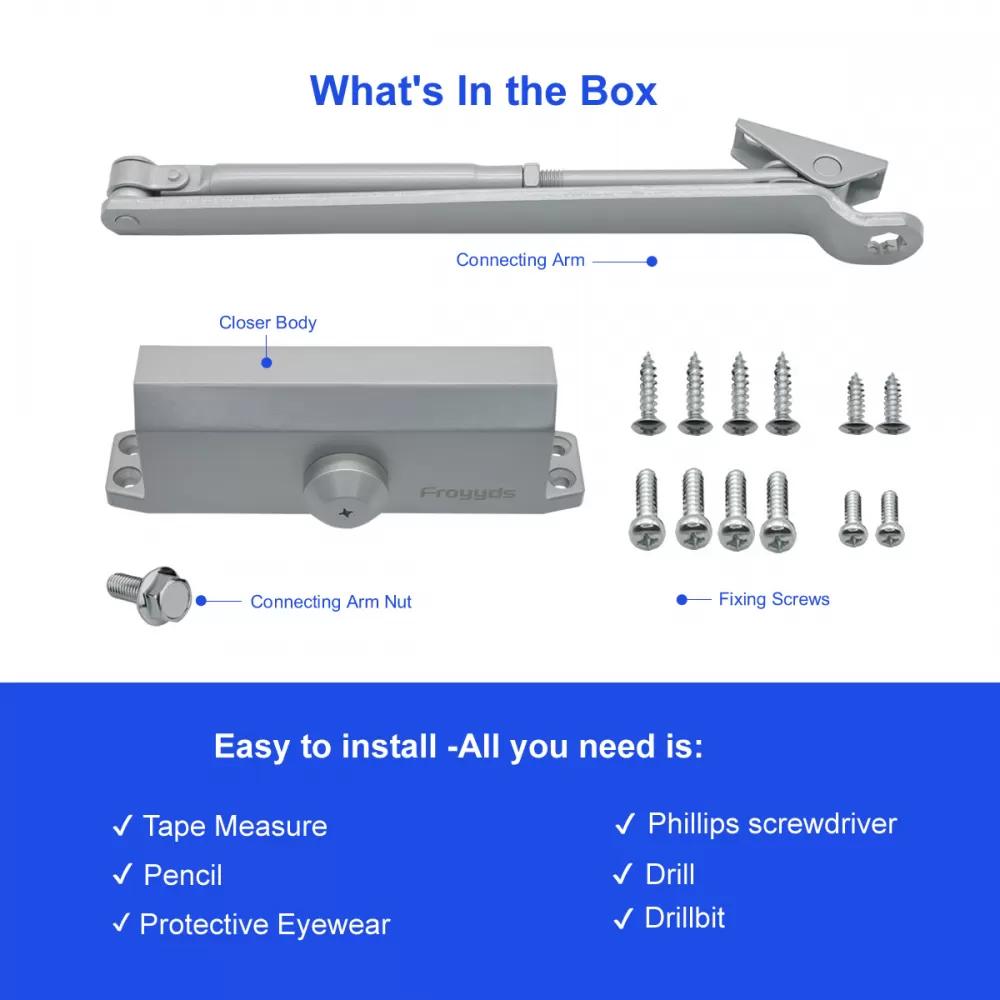

Package Include |
| ||||||
| Technical Parameters | |
|---|---|
| Brand | Froyyds |
| Templating (Hole Pattern) | 19MM x 230MM |
| Usage | Medium to Heavy Duty |
| Mounting Options | Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side) |

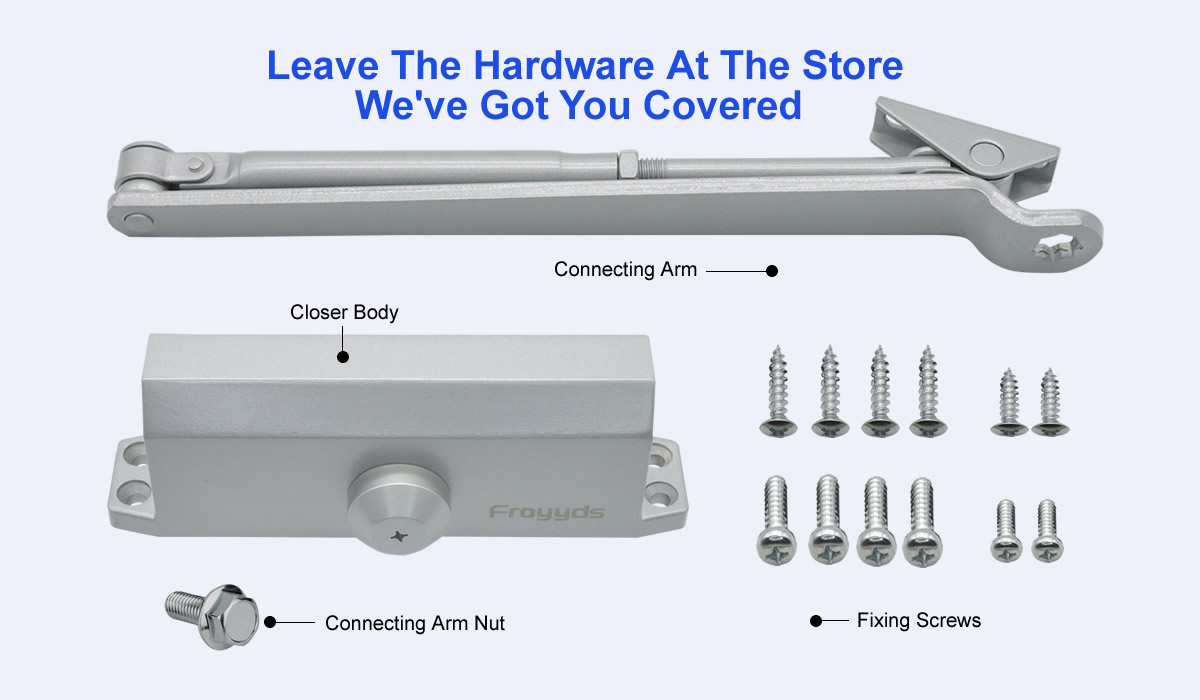

| Body Construction | Cast Aluminum Body |
| Spring Size | Adjustable Spring Size 5 |
| Handing | Non Handed – Completely Reversible |
| Speed Control | Adjustable door closing/latching speed |
| Backcheck | Back check intensity control standard |
| Piston, Spindle, Spring | Heat treated heavy-duty steel piston, spindle and spring |
| Cover | None |
| Fasteners | Thru bolts with machine screws, wood screws & Self tapping machine screws |
| Item Dimensions LxWxH | 306 x 90 x 76 MM |
| Item Weight | 2.0KG |
| Installation Type | Screw-In |
I.Regular Mounting (Pull Side)
MULTI-PURPOSE DESIGN: Works for left or right opening doors.
PERFECT FOR LIGHT RESIDENTIAL DOORS, EASY OPEN FOR WOMAN/CHILDREN, FULLY ADJUSTABLE
Notice
Mounted on the Pull Side of the Door. It involves attaching the door closer to the door and the arm is mounted on the top frame.
II. Top Jamb Mounting (Push Side)
MULTI-PURPOSE DESIGN: Works for left or right opening doors.
PERFECT FOR LIGHT RESIDENTIAL DOORS, EASY OPEN FOR WOMAN/CHILDREN, FULLY ADJUSTABLE
Notice
Mounted on the Push Side of the Door. The top jamb mounting is a type of door closer installation where the closer is mounted on the top of the door frame, rather than on the door face.
III. Parallel Arm Mounting (Push Side)
MULTI-PURPOSE DESIGN: Works for left or right opening doors.
PERFECT FOR LIGHT RESIDENTIAL DOORS, EASY OPEN FOR WOMAN/CHILDREN, FULLY ADJUSTABLE
Notice
Mounted on the Push Side of the Door. the parallel arm mounting is a type of installation that is used when the door closer is mounted on the face of the door and is used with the parallel arm mounting bracket.
- Medium to Heavy duty, The commercial-grade arm won't interfere with opening while closing doors slowly enough to allow graceful entrance and exit
- Double lever arm can be installed for regular or top-of-jamb mount, or for parallel arm mount with included mounting shoe
- Latching/Closing speed adjustable valve, adjustable spring power size 5, Forged Steel Arm and Heat Treated Piston
- Non-handed arm permits installation on doors with hinges on right or left side
- Brand: Froyyds
- Availability: In Stock
$89.90
Froyyds® FR5045BW surface mount hydraulic door closers has an advanced buffer function to avoid the noise caused by vigorously closing the door and strong wind.
High-Quality Door Closer at a Great Value
Designed for medium to high traffic areas, our FR5045BW automatic door closer is perfect for a variety of aluminum storefronts, factories, schools, restaurants, and other public places. With high-quality aluminum housing and steel-encased hardware, our hydraulic closer is an incredible product for a great price.
Secure & Seamless
Don't let the door hit you on the way out! Our hydraulic door closer is built to close consistently and securely. Plus, our auto door closer ensures smooth door closure while preventing slamming.
Fully Adjustable
With three independent valves, you can adjust both the sweep motion and the catch-closing mechanism of your door arm closer, so you can set the opening force, closing speed and backcheck speed of your door.
Easy to Install
Each of our hydraulic door closers come with a detailed guide that includes a fitting template, saving you time and a trip to the general contractor. Watch our exclusive installation video for additional instruction.
Mounting Options
Regular (Pull Side), Top Jamb (Push Side), Parallel Arm (Push Side)
Applicable Door Width
≤1200 MM
Function
Latching/Closing Speed Adjustable, Backcheck Speed
Withstands 2,000,000+ open/close cycles
For doors weight to 80~120KG
Perfect for aluminum storefronts, factories, schools, restaurants, and other public places.
Smooth & secure close withno slamming
Works with both woodand metal surfaces
Install in under 10 minutes
For Pull-Side Door Mounts
Mount your FR5045BW Froyyds door closer body onto the "pull" side of your door and mount the closer arm on the face of the frame head.
For Doors weight to 80-120KG
Compatible with residential and office doors weight to 80-120KG and tested to withstand 2,000,000+ open/close cycles.
Works with Wood or Metal Doors
Install the FR5045BW Froyyds door closer in under 10 minutes on any wood or metal door in your home or office.
Adjustable Arm Operated
Door closers are suitable for opening left and right. The maximum opening angle is 180 degrees.
The door and the door frame should be on the same plane. If the plane distance is within 5 cm / 1.97 inches, you can adjust the arm to install the door closer smoothly.
Adjustable door closing/latching speed
Closing speed control: valve 1 to control the speed of closure between 180 - 15 degrees
Latching speed control: valve 2 to control the speed of closurein the final 15-0 degrees of operation
Attention: The adjusting screw cannot be screwed out of the surface of the door closerbody, otherwise the door closer may leak oil and cannot be used.
Suitable for outdoor and internal
The door closer can work in the harsh environment of -40 ℃ ~ 50 ℃. It will not stop working because of the harsh environment. Please rest assured to use on fire doors. The oil will not freeze due to the low temperature. So it is suitable for outdoor and internal use.
Froyyds hopes to bring convenience and comfort to people's lives and improve the quality of life.
When One Door Closes,Another Opens...
Froyyds is a professional door closer supplier !
Perfect for parents who has naughty kids like to push doors.
Great for pet owners whose dogs like to push doors.
Stop noise from slamming doors.
Main parameter | |||||||
Overall dimension(MM) | Installation dimension(MM) | Applicable door weight(KG) | Applicable door width(MM) | ||||
A | B | C | D | E | |||
248 | 44.5 | 72 | 19 | 230 | 80~120 | ≤1200 | |
Function | I. CLOSING SPEED REGULATION: Control the speed of your door's swing. II. LATCH SPEED REGULATION: Control the speed of your door's closure. III. BACKCHECK FUNCTION | ||||||
Package Include |
| ||||||
| Technical Parameters | |
|---|---|
| Brand | Froyyds |
| Templating (Hole Pattern) | 19MM x 230MM |
| Usage | Medium to Heavy Duty |
| Mounting Options | Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side) |
| Body Construction | Cast Aluminum Body |
| Spring Size | Adjustable Spring Size 5 |
| Handing | Non Handed – Completely Reversible |
| Speed Control | Adjustable door closing/latching speed |
| Backcheck | Back check intensity control standard |
| Piston, Spindle, Spring | Heat treated heavy-duty steel piston, spindle and spring |
| Cover | None |
| Fasteners | Thru bolts with machine screws, wood screws & Self tapping machine screws |
| Item Dimensions LxWxH | 306 x 90 x 76 MM |
| Item Weight | 2.0KG |
| Installation Type | Screw-In |
I.Regular Mounting (Pull Side)
MULTI-PURPOSE DESIGN: Works for left or right opening doors.
PERFECT FOR LIGHT RESIDENTIAL DOORS, EASY OPEN FOR WOMAN/CHILDREN, FULLY ADJUSTABLE
Notice
Mounted on the Pull Side of the Door. It involves attaching the door closer to the door and the arm is mounted on the top frame.
II. Top Jamb Mounting (Push Side)
MULTI-PURPOSE DESIGN: Works for left or right opening doors.
PERFECT FOR LIGHT RESIDENTIAL DOORS, EASY OPEN FOR WOMAN/CHILDREN, FULLY ADJUSTABLE
Notice
Mounted on the Push Side of the Door. The top jamb mounting is a type of door closer installation where the closer is mounted on the top of the door frame, rather than on the door face.
III. Parallel Arm Mounting (Push Side)
MULTI-PURPOSE DESIGN: Works for left or right opening doors.
PERFECT FOR LIGHT RESIDENTIAL DOORS, EASY OPEN FOR WOMAN/CHILDREN, FULLY ADJUSTABLE
Notice
Mounted on the Push Side of the Door. the parallel arm mounting is a type of installation that is used when the door closer is mounted on the face of the door and is used with the parallel arm mounting bracket.
